3M™ Littmann® Cardiology IV™ - Burgundy tube & Champagne finish chest piece 6176
5-year warranty granted by Littmann USA
In stock
3M™ Littmann® USA Warranty Services
Make sure that your Littmann stethoscope is under warranty and view available service options provided by Littmann USA.
Cardiology IV
Cardiology IV stethoscope from 3M Littmann encompasses a redesign from the ground up featuring a brand new stainless steel chestpiece, brand new fully optimised pediatric and adult diaphragms unique to the Cardiology IV, the very latest generation long life tubing, a highly tuned bell side for instant low frequencies, and class leading 7 year warranty. This is the upgrade you have been waiting for...
Full acoustic range adult and pediatric auscultation is available through its newly designed dual head chestpiece. Simply rotate the central spline to alternate between the two sides for superior adult and pediatric auscultation. The brand new single piece diaphragms (unique to the Cardiology IV), have further optimised acoustic sensitivity, making all sounds clearer and easier to hear! The new long life binaural (two tubes in one) are the very latest specification, and latest materials, helping raise the warranty length to an industry leading 7 years! The selector spline is now recessed to allow a perfect flush fit with the binaural tube, now featuring a visual indicator for easy identification of the operational diaphragm.
FEATURES
NEW: The very latest in the standard for dual head cardiology technology..
NEW improved high frequency acoustics – the all new design allowing greater access to high frequency heart sounds.
NEW unique diaphragm designs – newly designed, fully optimised, adult and pediatric diaphragm offer a full range of auscultation sounds.
NEW next generation long life tubing for greater longevity with a double lumen (two tubes in one) design to minimise external friction sounds.
NEW 100% latex free construction – for increased patient comfort, durability and lifespan.
NEW single piece diaphragm technology – easier to clean than ever before providing greater infection control properties.
NEW 7 year warranty – class leading 7 year guarantee from date of purchase.
Spare parts kit included – spare small soft sealing eartips, large firm grey eartips, and non chill bell sleeve are included as standard.
3M’s ‘Tunable Technology’ lets you easily switch from low to high frequency sounds by switching from light to firm pressure.
Double-sided large/small chestpiece for both adult and pediatric assessment.
For maximum versatility the reverse side is also easily transformed into a traditional open bell with the supplied adapter.
Laser engraving of text and symbols to personalise your scope and avoid theft/loss.
Anatomically designed headset comfortably positioned for optimal sound transmission.
Comfortable Snap-Tight soft seal eartips create an excellent acoustic seal to reduce ambient noise.
More than twice as loud* as the next leading stethoscope
Allows you to more reliably and consistently hear heart sounds at lower frequencies (below 120Hz*) like Korotkoff sounds, Mitral Stenosis and S3 and S4 Gallops when compared to other leading stethoscopes.
Weighs less** than other stethoscopes
Littmann performance rating of 9 out of 10.
Tubing: Black (68.5cm/27"). Finish: Smoke
Available in multiple colorways
Precision machined engineering
Adult and pediatric sides both with tunable diaphragm
Apply light pressure with the floating diaphragm. (Bell mode)
Apply firm pressure with the floating diaphragm.
Rotate the chestpiece. Apply light
pressure.
Apply firm pressure with the small floating diaphragm.

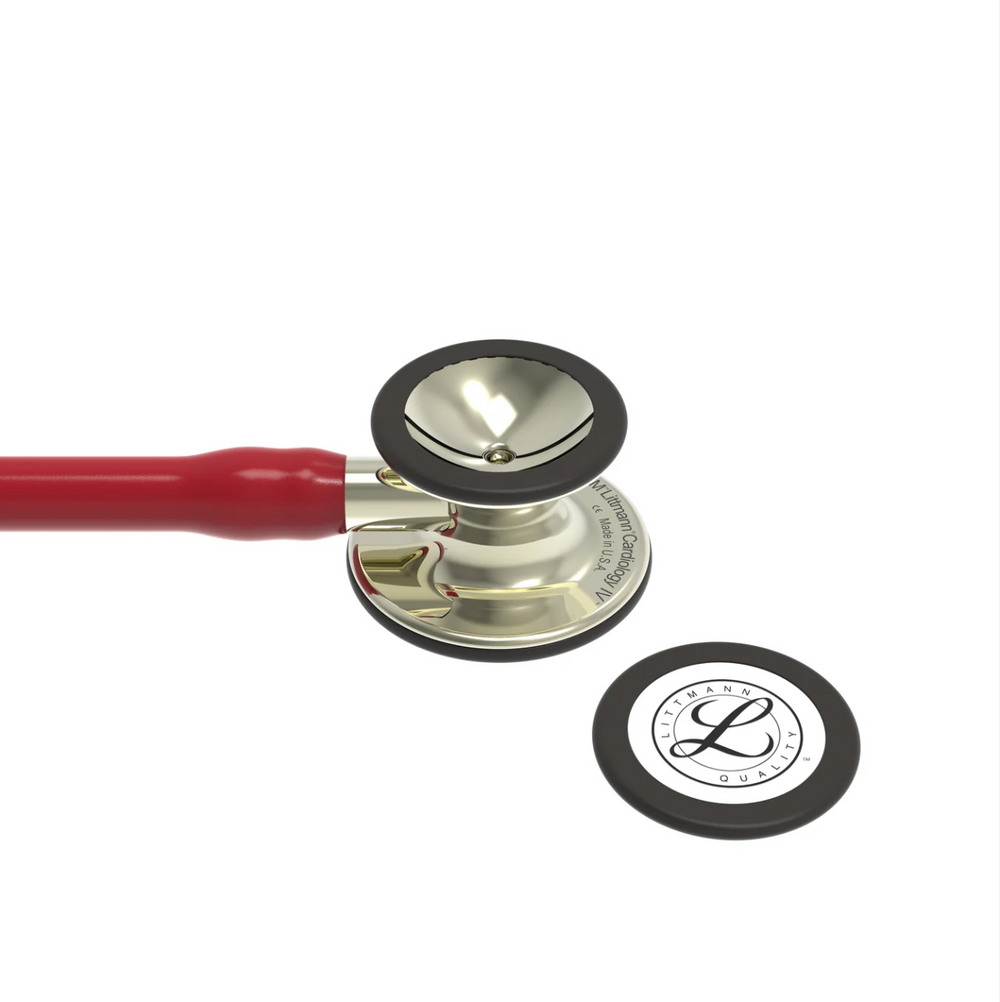

Easy-remove diaphragm permits bell mode with adapter provided.
Visual identification of the operational diaphragm
Easily interchangeable between open bell and tunable diaphragm, giving three possible functions.
| Application | Cardiology/High Performance, Diagnostic Auscultation, Patient Monitoring, Physical Assessment and Blood Pressure, Physical Assessment and Diagnosis |
| Approved Environmental Marketing Claim (EMC) | 3M™ Littmann® next-generation tubing is not made with natural rubber latex, and does not contain phthalate plasticizers.,3M™ Littmann® tubing does not contain phthalate plasticizers. It improves resistance to skin oils and alcohol, and is less likely to pick up stains.,3M™ Littmann® tubing does not contain phthalate plasticizers. It provides longer stethoscope life due to improved resistance to skin oils and alcohol, and is less likely to pick up stains. |
| Binaural Construction | Double Lumen |
| Brands | Littmann® |
| Chestpiece Color | Black, Champagne, High Polish Mirror, Rainbow, Silver, Smoke |
| Chestpiece Finish | High Polish, Machined Stainless Steel, Matte, Mirror |
| Chestpiece Size | 1.3 Inch / 3.3 cm, 1.7 Inch / 4.3 cm |
| Chestpiece Technology | Double-sided |
| Chestpiece Weight | 3.1 Ounce |
| Chestpiece Weight (Metric) | 87 g |
| Cladimed Code | K50BE01 |
| Diaphragm Diameter (Imperial) | 1.7 in |
| Diaphragm Diameter (Metric) | 4.3 cm, 4.3 mil |
| Diaphragm Material | Epoxy/Fiberglass |
| Diaphragm Shape | Round |
| Diaphragm Type | Tunable, single-piece |
| Eartip Type | Soft Sealing |
| Environmental claim being made | Yes |
| Environmental claim relates to | Product |
| Evidence for Claim | Self Certified |
| Extra Eartips | Yes |
| Factory ISO Certification | No ISO Certification information available |
| Headset Finish | Black, Smoke, Stainless |
| Headset Material | Anodized Aluminum |
| Model | Cardiology IV™ |
| Net Weight (Imperial) | 0.39 lb, 6.2 oz |
| Net Weight (Metric) | 177 g |
| Occupation | Advanced Registered Practice Nurse, Anesthesiologist, Cardiologist, Critical Care Nurse, EMT/EMS, Emergency Physician, Family Practitioner, Gastroenterologist, Hospitalist, Intensivist, Internist, Medical Student, Nurse, Nursing Student, Obstetrician, Osteopath, Pediatrician, Physician, Physician Assistant, Pulmonologist, Respiratory Specialist, Teacher/Professor/Instructor, Veterinarian |
| Performance | 9 |
| Product Type | Stethoscope |
| Small Diaphragm Diameter | 1.3 in |
| Small Diaphragm Diameter (Metric) | 3.3 cm, 3.3 mil |
| Special Adaptors | No |
| Tube Color | Alabaster, Black, Burgundy, Caribbean Blue, Gray, Hunter Green, Midnight Blue, Navy Blue, Plum, Raspberry, Red, Rose Pink |
| Tube Construction | Double Lumen |
| Tunable Diaphragm | Yes |
| Warranty Period | 7 yr |
| eClass 14 Classification Group | 34340191 |
Dimensions and Classifications
| Overall Diameter (Imperial) | 1.7 in |
| Overall Diameter (Metric) | 4.3 cm |
| Overall Length (Imperial) | 22 in, 27 in |
| Overall Length (Metric) | 55.8 cm, 69 cm |
