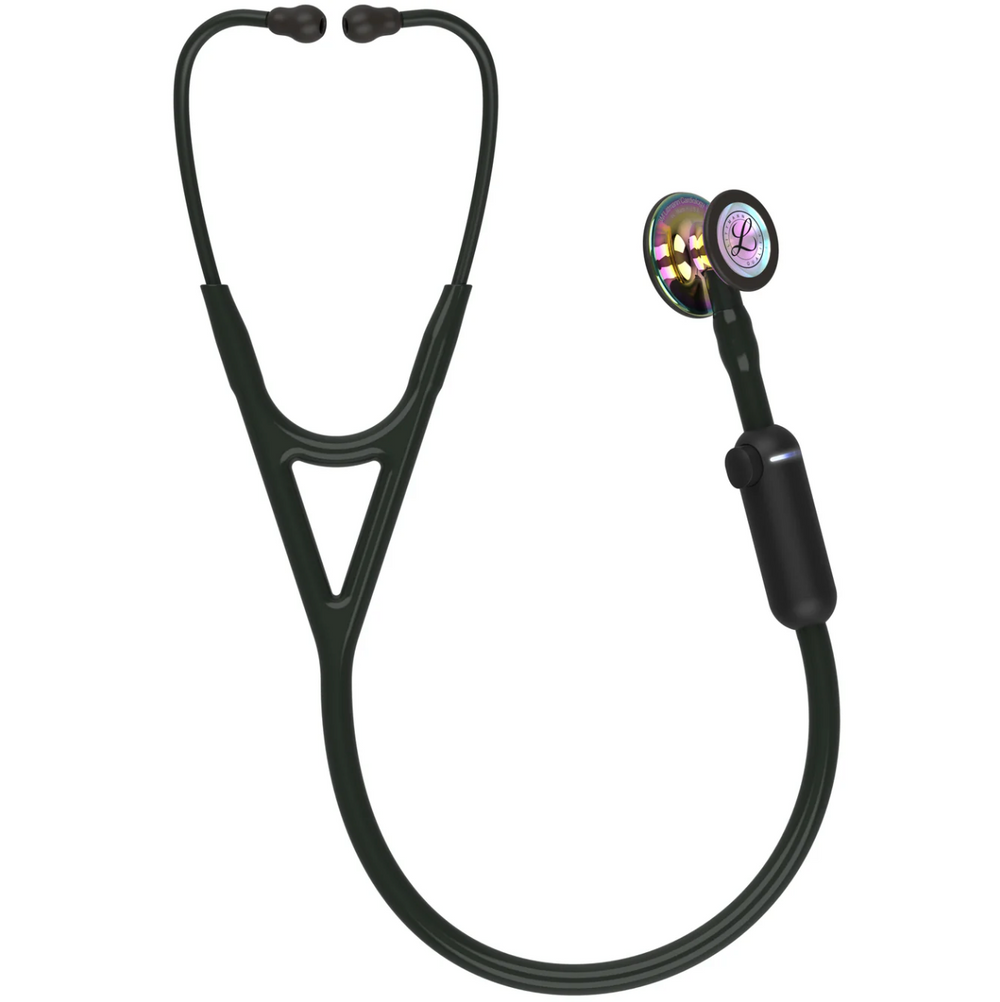

3M™ Littmann® CORE Digital - Black tube & High polish rainbow chest piece 8570
5-year warranty granted by Littmann USA
Out of stock, PRE-ORDER now!
This product is currently out of stock — you can still pre-order it.
PRE-ORDER NOWWe will confirm the price and the expected arrival date on WhatsApp.
3M™ Littmann® USA Warranty Services
Make sure that your Littmann stethoscope is under warranty and view available service options provided by Littmann USA.

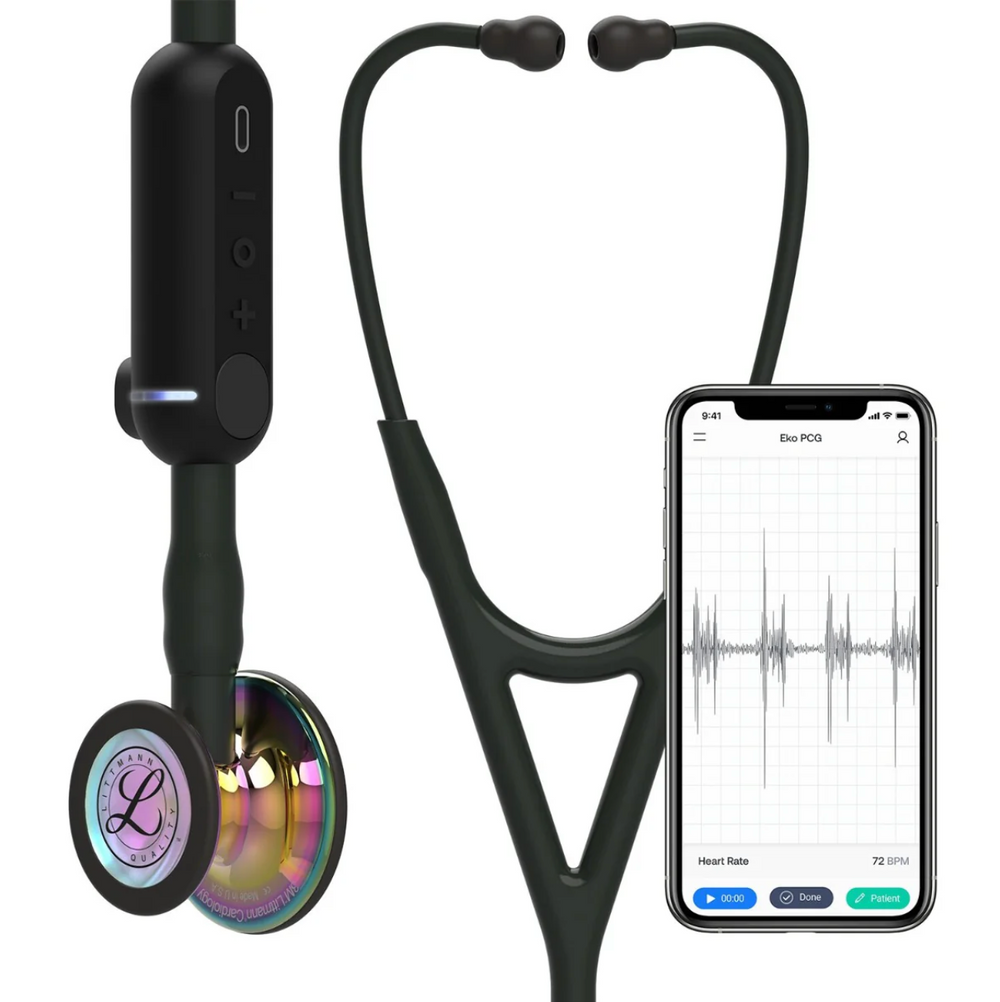

The 3M™ Littmann® CORE Digital Stethoscope features the outstanding acoustics, comfort and quality of a Littmann cardiology-grade stethoscope enhanced by powerful digital technology. Features like up to 40x amplification1 and active noise cancellation can help you auscultate with greater confidence. The 3M Littmann CORE Stethoscope connects with Eko software on a smart device2 to visualize, record and share data.
The FDA-cleared 3M Littmann CORE Stethoscope toggles between analog and amplified listening modes so you can listen how you want to during assessments. Tunable diaphragm technology—a 3M invention—lets you hear different frequency sounds by simply adjusting the pressure on the chestpiece. Hold the chestpiece with light pressure on the patient to hear low frequency sounds; press a little more to hear higher frequency sounds. Soft-sealing ear tips conform to individual ears for optimal comfort and excellent sound occlusion.

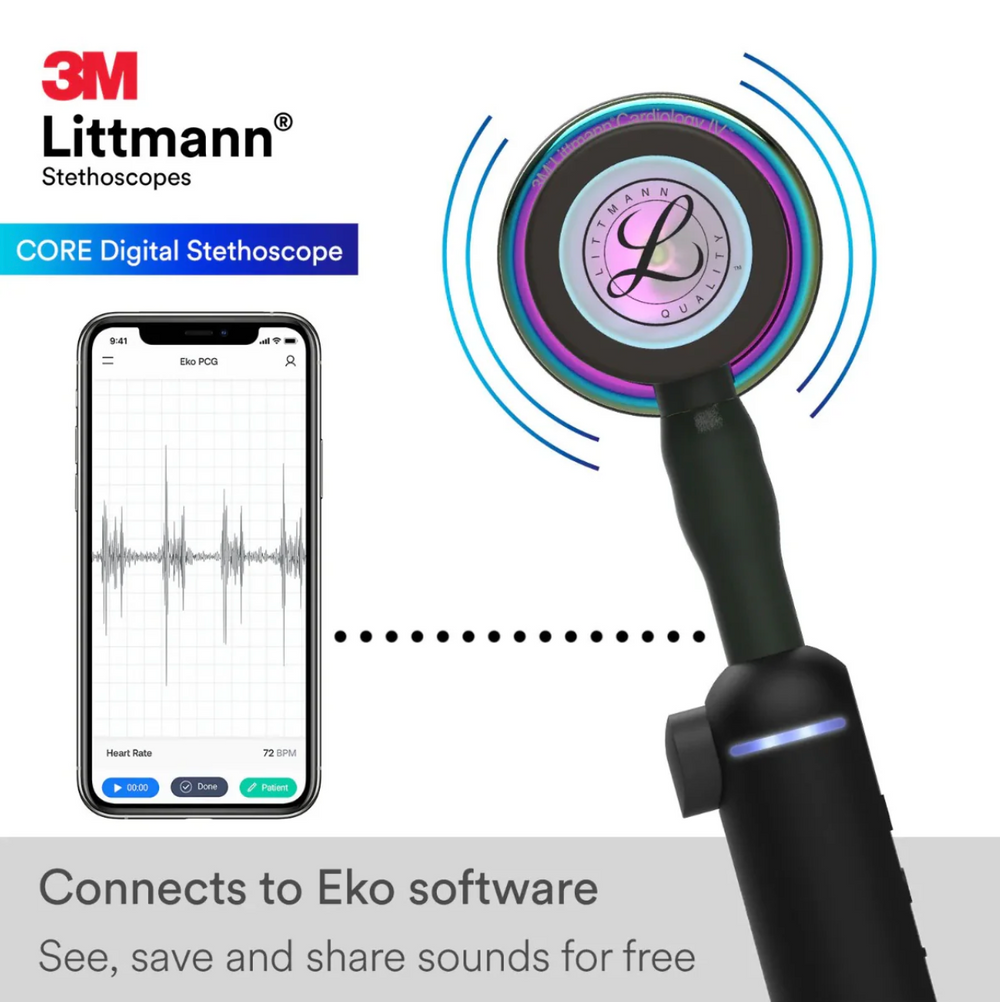

The 3M Littmann CORE Stethoscope works with Eko software on iOS and Android devices, giving you a HIPAA compliant means to save and annotate 15, 30, 60 or 120-second recordings in a secure dashboard. Create a library of heart sounds to monitor the progressions of a disease or for education, and securely share recordings with colleagues*. The 3M Littmann CORE Stethoscope can be used with Eko Artificial Intelligence to aid in the detection of murmurs.*
*Subscription may be required.

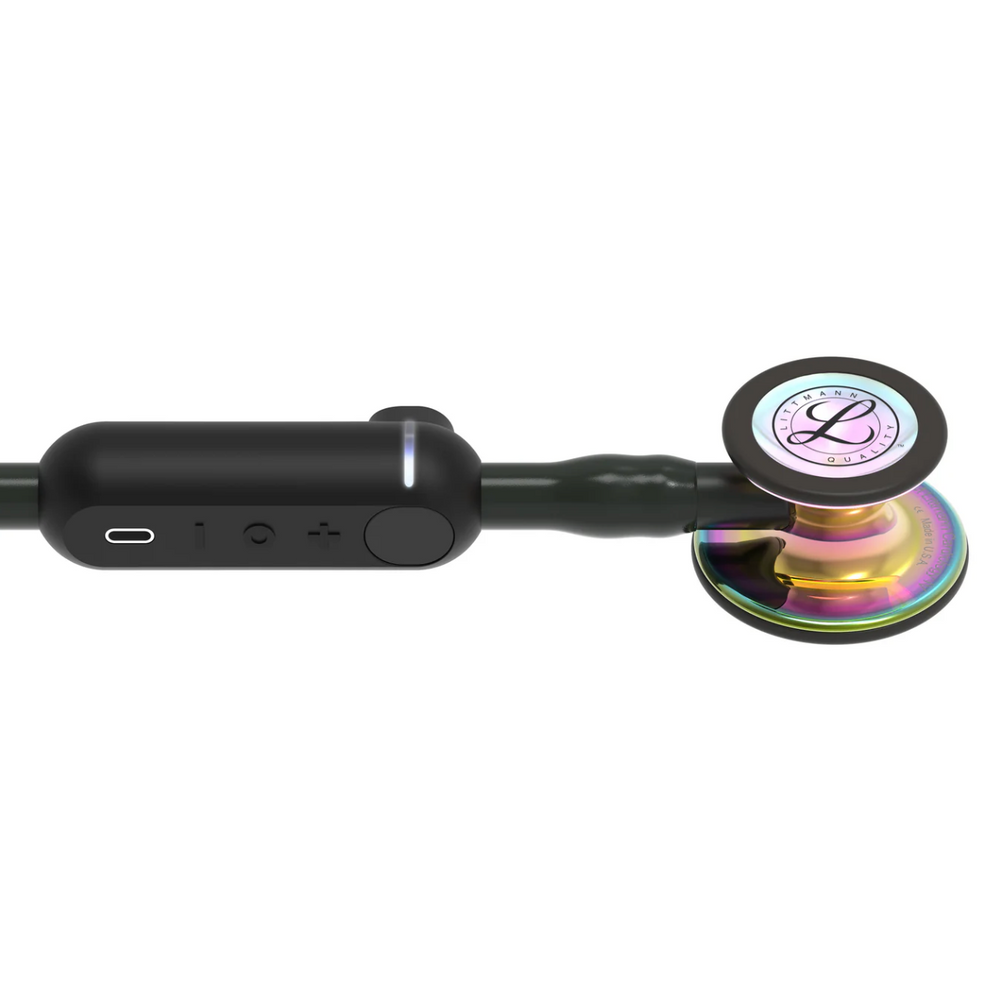

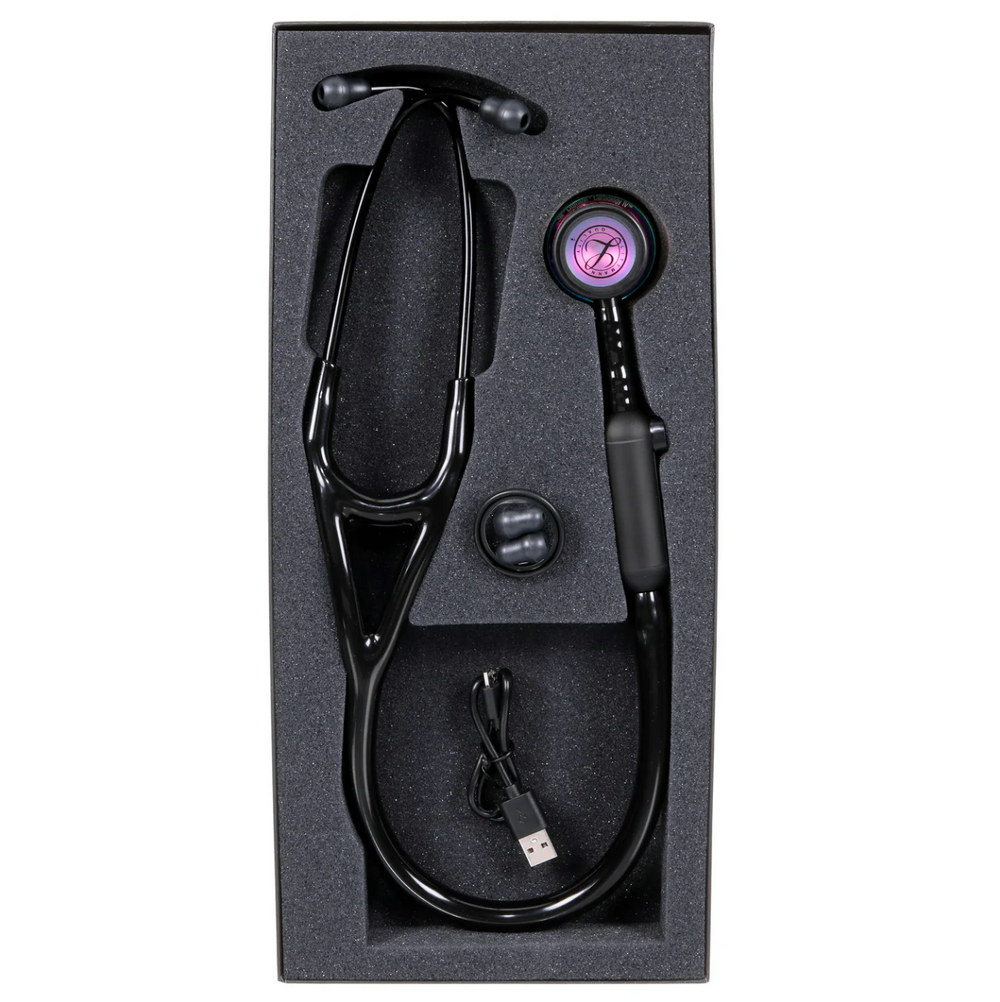

The 3M Littmann CORE Digital Stethoscope is pre-assembled with a CORE Digital Attachment and a 3M Littmann Cardiology IV Stethoscope. Please visit the respective User Manuals for instructions for use.
CORE Digital Attachment User Manual
3M Littmann Cardiology IV Stethoscope User Manual

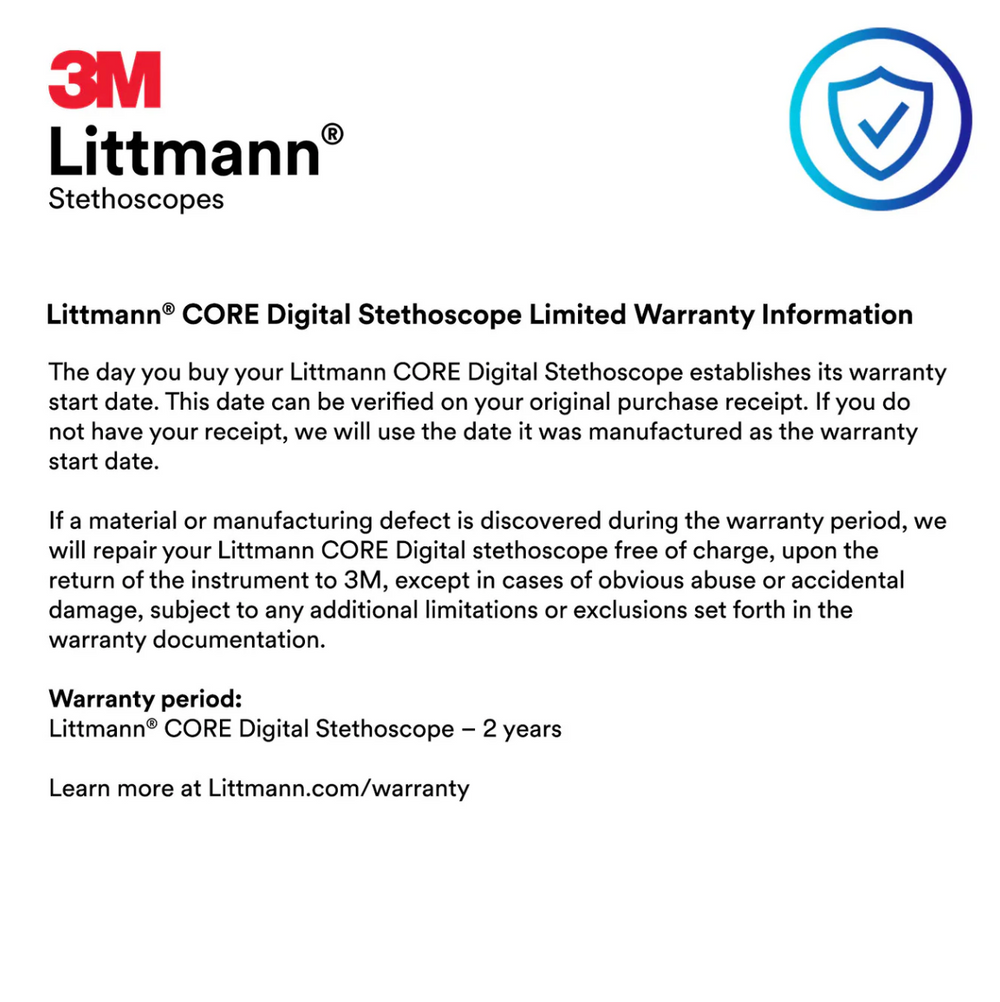

Please note that the warranty period for the 3M Littmann CORE Digital Stethoscope is 2 years and does not carry the warranty period mentioned in the Littmann Cardiology IV Stethoscope User Manual, which applies to the purchase of a Littmann Cardiology IV Stethoscope only, when purchased separately.

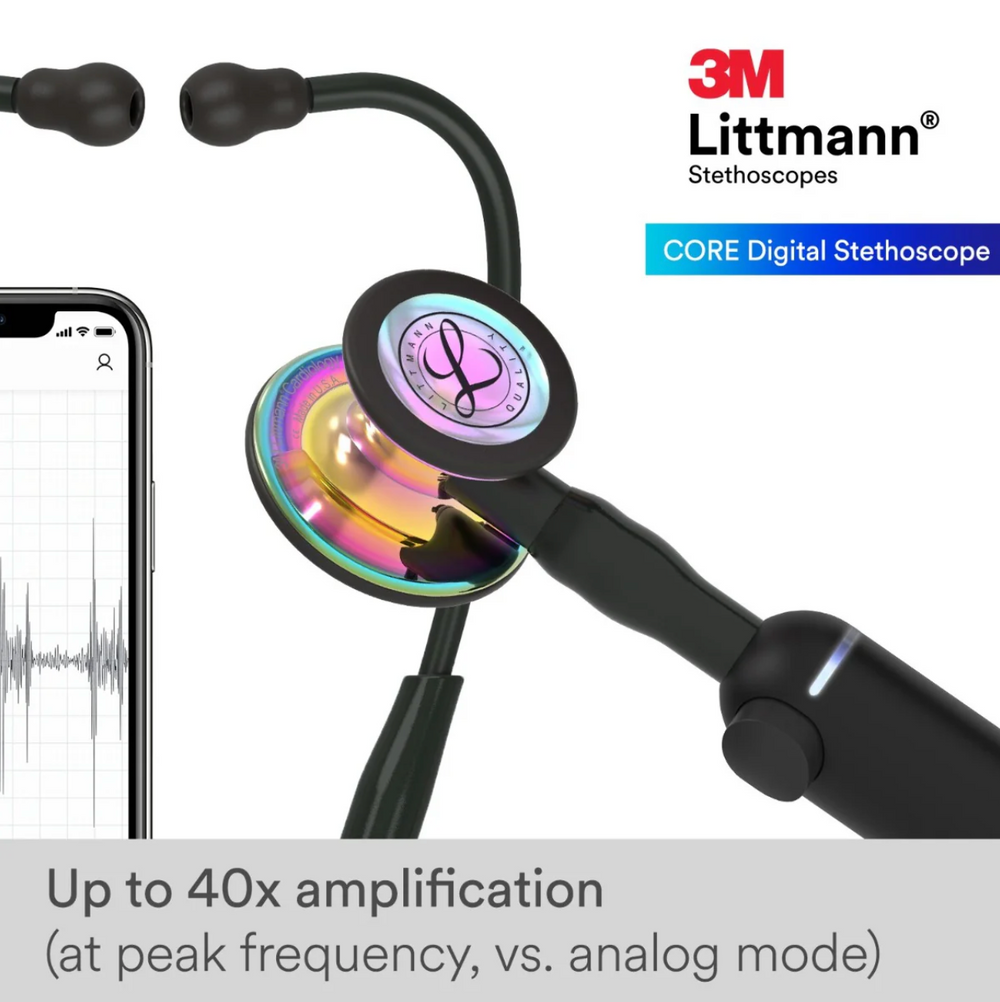

40X amplification based on comparison of analog versus electronically assisted amplified listening with maximum volume at the peak frequency (125 Hz).
Specifications
| Application | Cardiology/High Performance, Diagnostic Auscultation, Patient Monitoring, Physical Assessment and Blood Pressure, Physical Assessment and Diagnosis, Recording & Sharing, Sound Amplification |
| Binaural Construction | Double Lumen |
| Brands | Littmann® |
| Catalog Number | 8870,8863,8869,8570,8890,8480 |
| Chestpiece Color | Black, Copper, High Polish Mirror, Rainbow |
| Chestpiece Diameter (Imperial) | 1.7 in |
| Chestpiece Diameter (Metric) | 4.3 cm |
| Chestpiece Finish | High Polish, Machined Stainless Steel, Matte, Mirror |
| Chestpiece Size | 1.3 Inch / 3.3 cm, 1.7 Inch / 4.3 cm |

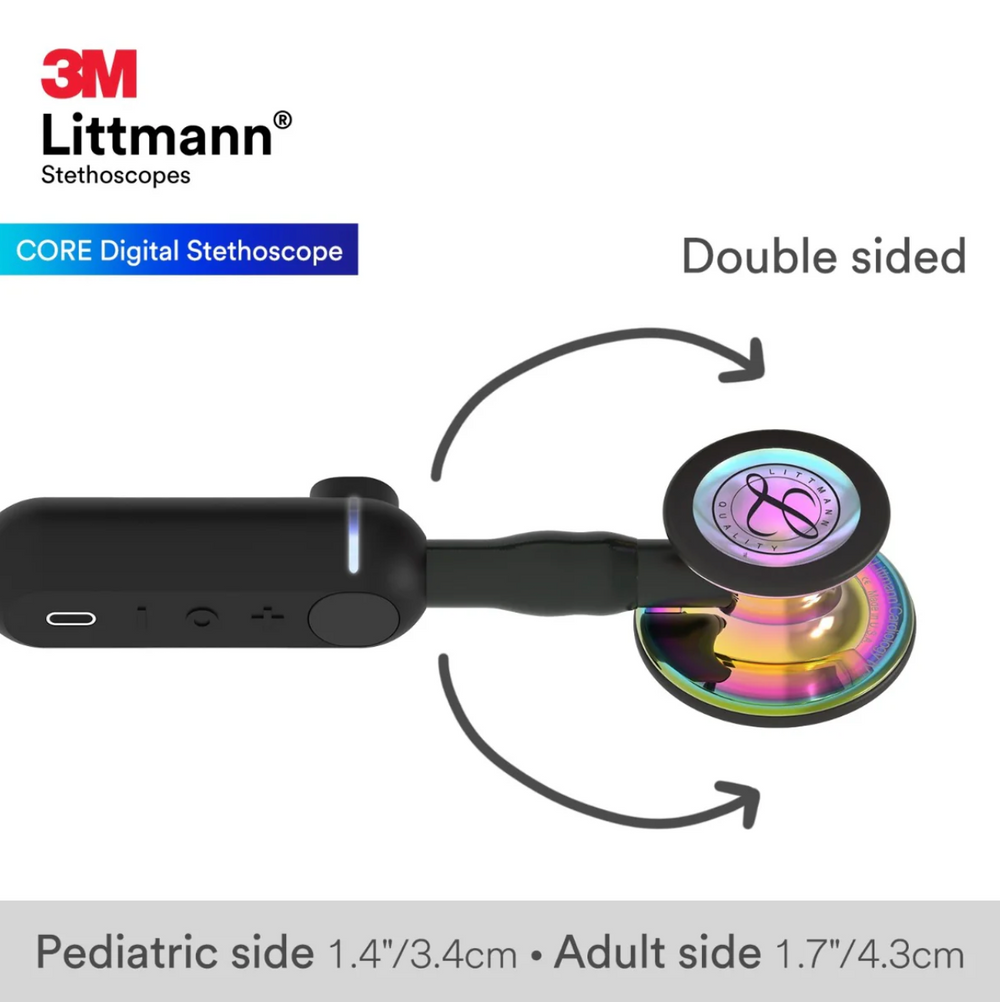

| Chestpiece Technology | Double-sided |
| Chestpiece Weight | 3.1 Ounce |
| Chestpiece Weight (Metric) | 87 g |
| Diaphragm Diameter (Imperial) | 1.7 in |
| Diaphragm Diameter (Metric) | 4.3 cm |
| Diaphragm Material | Epoxy/Fiberglass |
| Diaphragm Shape | Round |
| Diaphragm Type | Digital Electronic Filtering - Ambient Noise Reduction (ANR), Tunable, single-piece |
| Eartip Type | Soft Sealing |
| Extra Eartips | Yes |
| Factory ISO Certification | No ISO Certification information available |
| Headset Finish | Black |
| Headset Material | Anodized Aluminum |
| Model | CORE |
| Net Weight (Imperial) | 8.1 oz |
| Net Weight (Metric) | 232 g |
| Occupation | Advanced Registered Practice Nurse, Anesthesiologist, Cardiologist, Critical Care Nurse, EMT/EMS, Emergency Physician, Family Practitioner, Gastroenterologist, Hospitalist, Intensivist, Internist, Medical Student, Nurse, Obstetrician, Osteopath, Pediatrician, Physician, Physician Assistant, Pulmonologist, Respiratory Specialist, Teacher/Professor/Instructor, Veterinarian |
| Patient | Adult, Infant, Neonatal, Pediatric |
| Performance | 10, 10+ |
| Small Diaphragm Diameter | 1.3 in |
| Small Diaphragm Diameter (Metric) | 3.3 cm |
| Special Adaptors | No |
| Tube Color | Black |
| Tube Construction | Double Lumen |
| Tunable Diaphragm | Yes |
| Warranty Period | 2 yr |
| eClass 14 Classification Group | 34340191 |
Dimensions and Classifications
| Overall Length (Imperial) | 27 in |
| Overall Length (Metric) | 69 cm, 685.8 mm |
